LED Panel
Product code:
Features
- CRCA steel sheet body with powder coated in white
- Extruded Aluminium Frame with PMMA Diffuser
- 120° Beam Angle
- UGR <22 (UGR <19 as Optional)
- CRI>80 (CRI>90 as optional)
- LED lifespan: 50,000 hours (L70 @ 25°C)
- Operating temperature: -10°C to +40°C
- IP Rating: IP20/IP54
- Class IIInstallation: Recessed / Surface / Pendant
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL11-P6060 | 36W | 595*595*25 |
| GL11-P30120 | 36W | 295*1195*25 |
| GL11-P60120 | 60W | 595*1195*25 |
Optional:
- DIM : 1-10V Dimming
- DA : Dali Dimmable
- G : Gypsum Bracket
- S : Surface mounting Kit
- P : Pendant Kit
- EL3 : 3 Hours Emergency Kit
Ordering Guide:
- GL11-P6060-36-840-DA-G

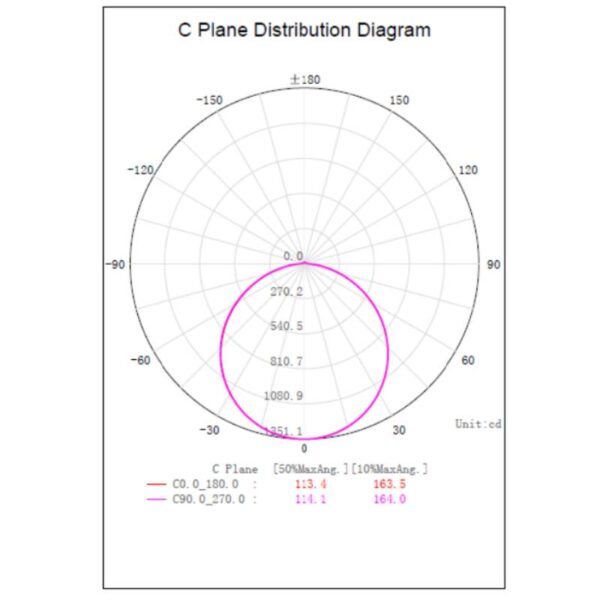

Photometrics:

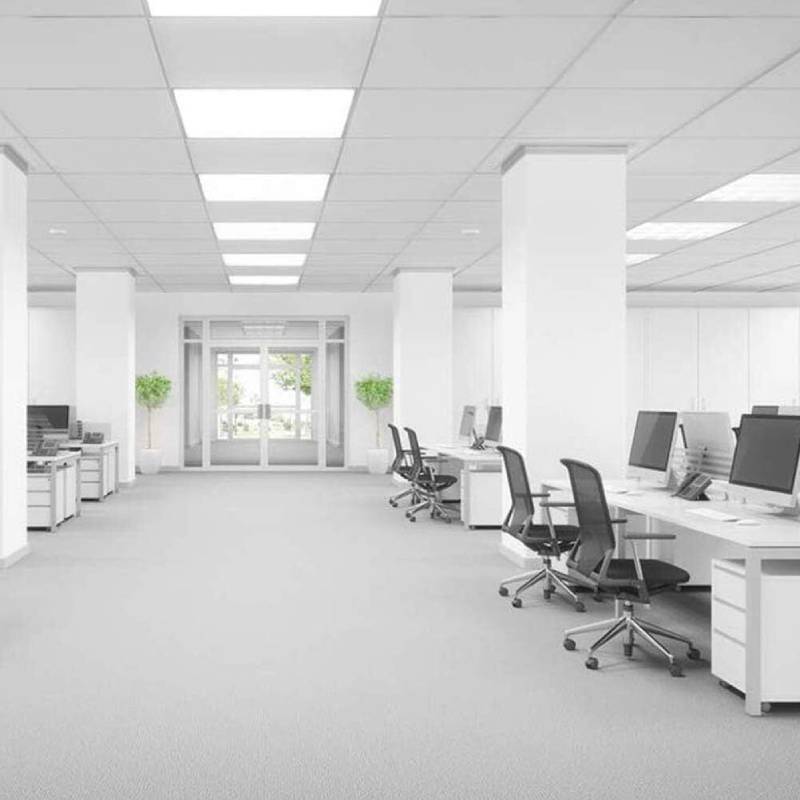

Application:
Office Room, Meeting Room, Classroom, Shopping Mall, Supermarket, Retailer Shops. Other situations: Hospital, Laboratory, Dust-Free Workshop, etc.
