Frameless Panel
Product code:
Features
- CRCA steel sheet body with powder coated in white.
- Frameless design with super slim 38mm thickness, R3 corner provides a smoothly looking.
- PMMA Opal Diffuser
- 120° Beam Angle.
- CRI>80 (CRI>90 as optional).
- LED lifespan: 50,000 hours (L70 @ 25°C).
- Operating temperature: -20°C to +40°C.
- IP Rating: IP40.
- Class II.
- Installation: Recessed / Pendant.
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL12-P6060 | 36W | 595*595*38 |
| GL12-P30120 | 36W | 295*1195*38 |
Optional:
- DIM: 1-10V Dimming
- DA: Dali Dimmable
- P: Pendant Kit
- EL3: 3 Hours Emergency Kit
Ordering Guide:
- GL12-P6060-36-840-DA

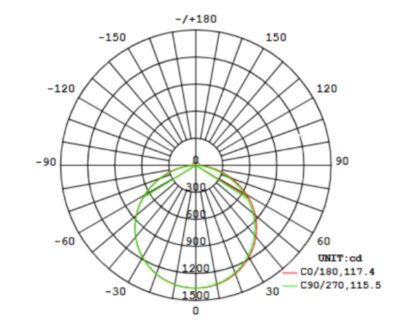

Photometrics:

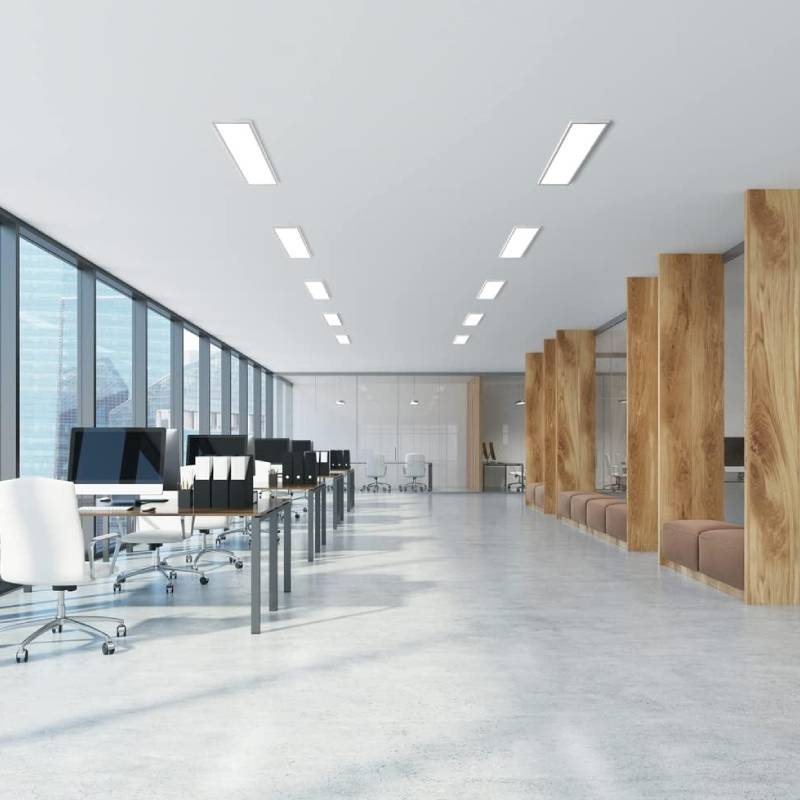

Application:
Office Room, Meeting Room, Classroom, Shopping Mall, Supermarket, Retailer Shops. Other situations: Hospital, Laboratory, Dust-Free Workshop, etc.
