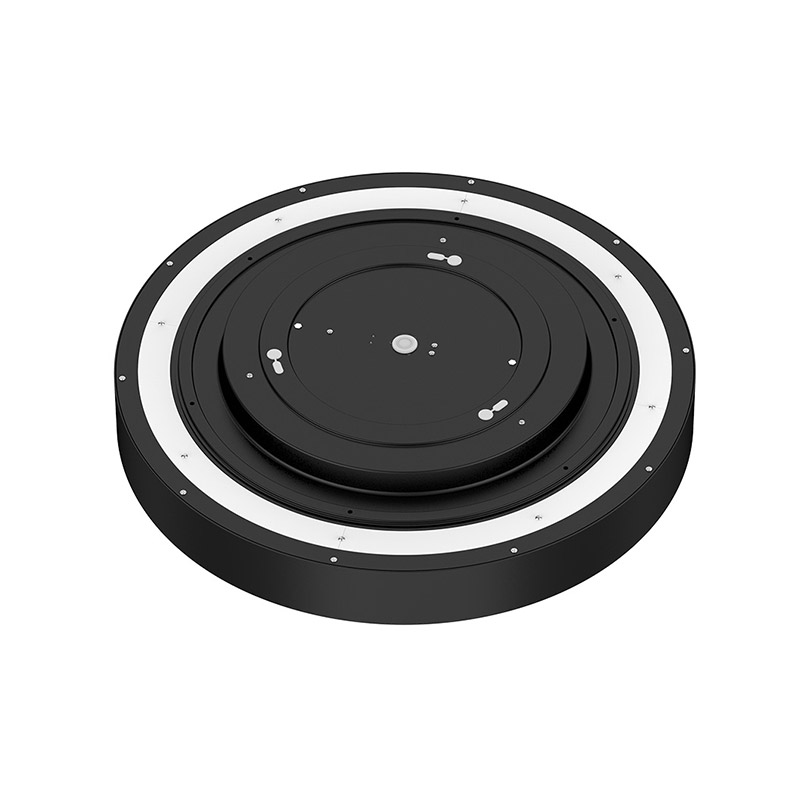

Full Moon
Product code:
Features
- Die cast aluminium body
- White RAL 9016 / Black RAL 9005 / Wood grain Colour Finish
- Polystyrene Diffuser
- Two lighting design: 100% direct lighting, up & down lighting
- Up & down lighting version: 20% up and 80% down for 400mm, 10% up and 90% down for 600mm / 800mm / 1000mm
- 120° Beam Angle
- LED lifespan: 50,000 hours (L70 @ 25°C)
- Operating temperature: -20°C to +40°C
- IP Rating: IP40, Class I

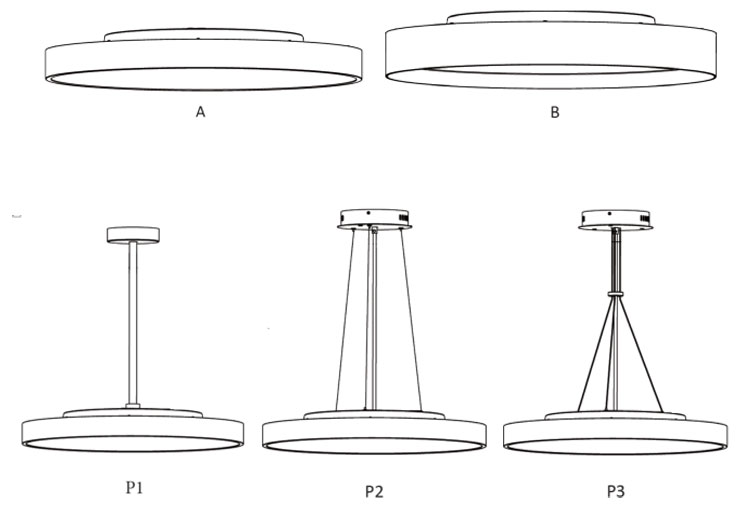

- Installation: Recessed/Surface/Pendant (With pendant rod suspension, with steel wire suspension, with wire harness suspension)
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL28-C4086 | 40W | Ø400*86(A) / 102(B) |
| GL28-C6086 | 60W | Ø600*86(A) / 110(B) |
| GL28-C8086 | 75W | Ø800*86(A) / 110(B) |
| GL28-C1086 | 100W | Ø1000*86(A) / 110(B) |
Optional:
- DIM: Triac Dimming
- DA: Dali Dimmable

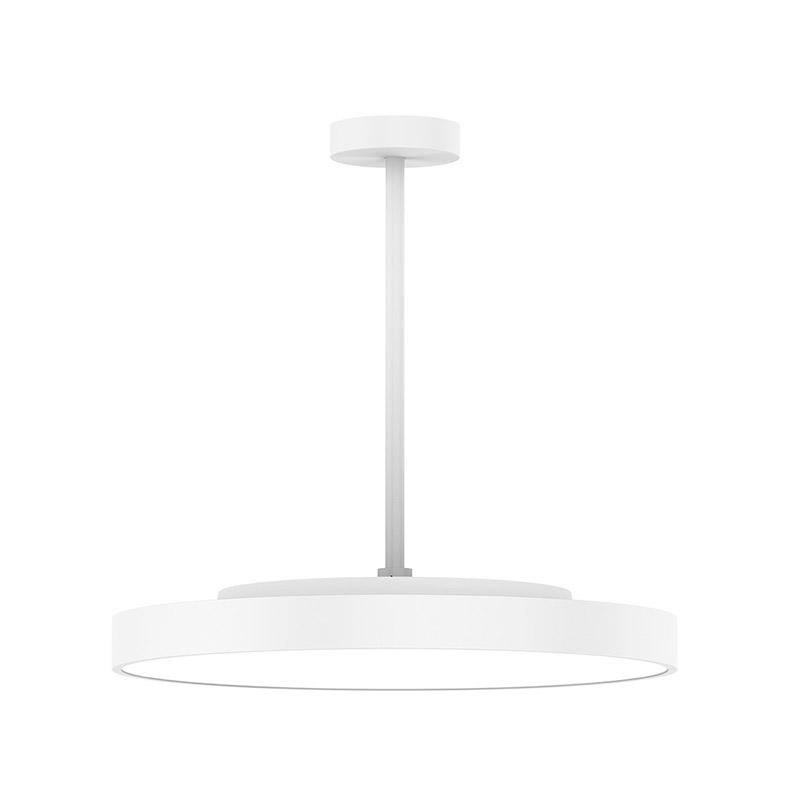

- P1: Pendant Rod Kit
- P2: Steel Wire Kit
- P3: Wire Harness Kit
Ordering Guide:
- GL28-C4086-A-40-S 840-DIM-P1
Application:

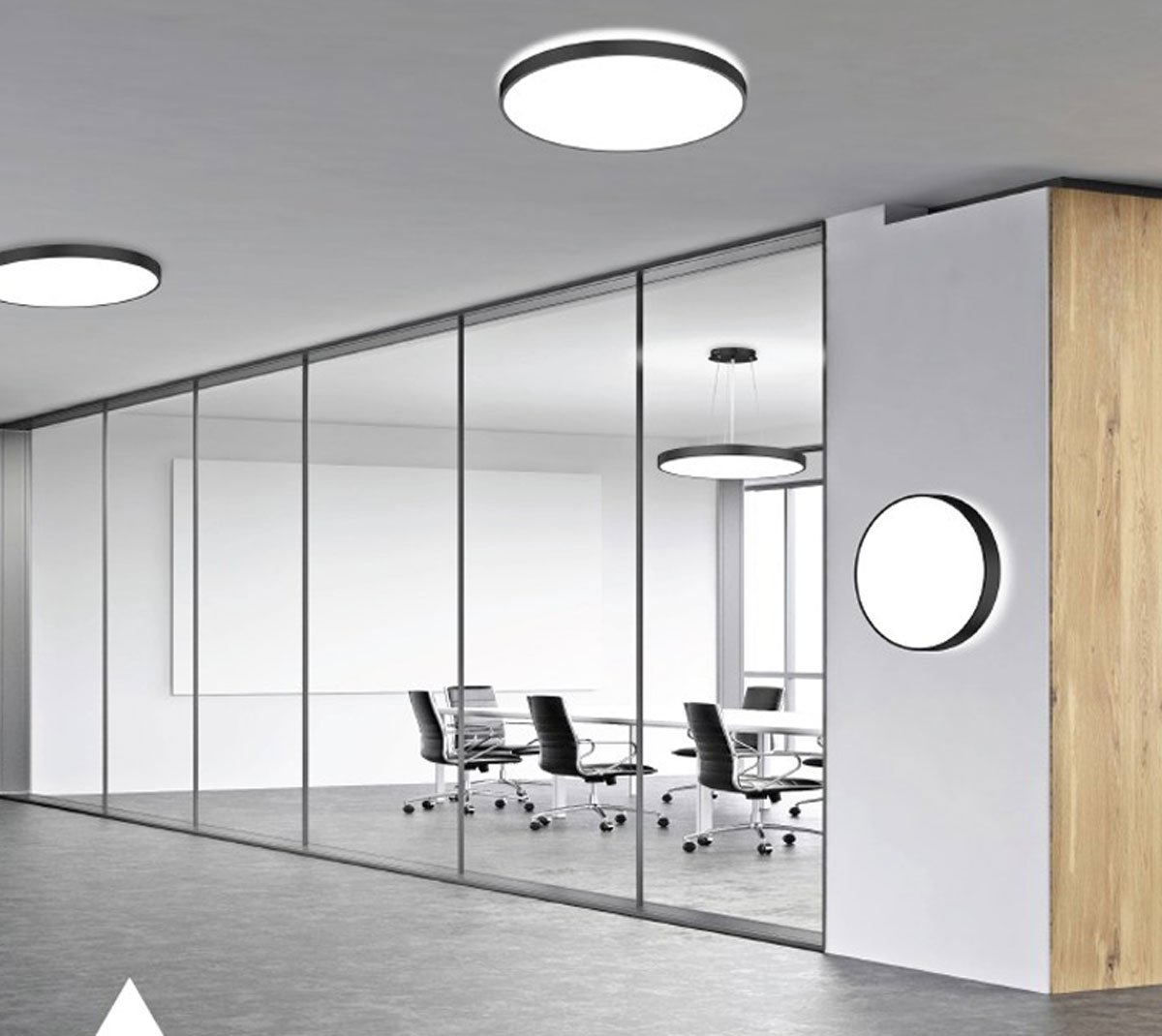

It is designed for general lighting applications in office, supermarket, school, hotel, etc.
