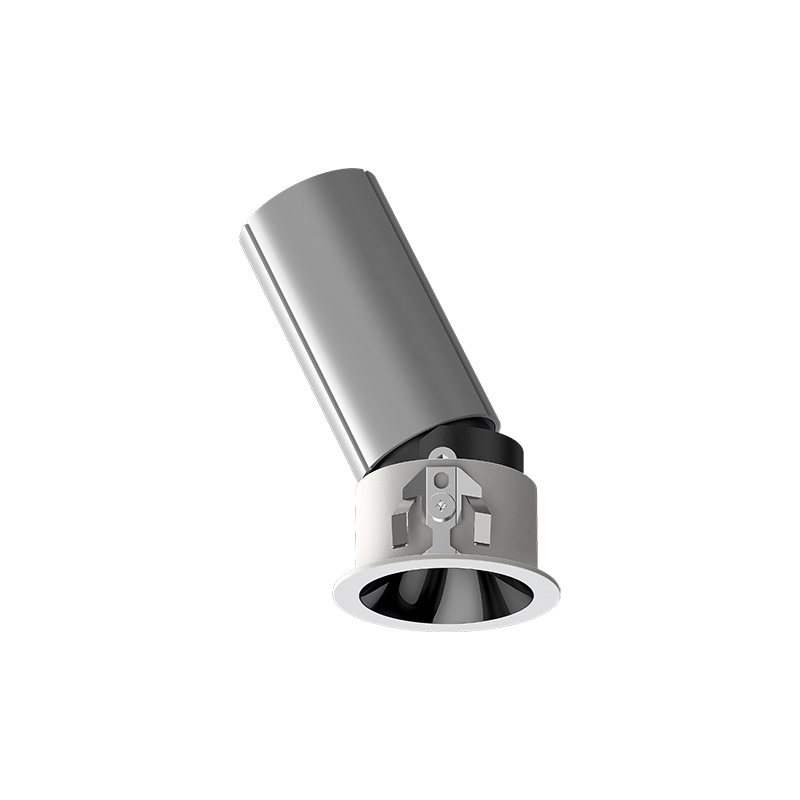

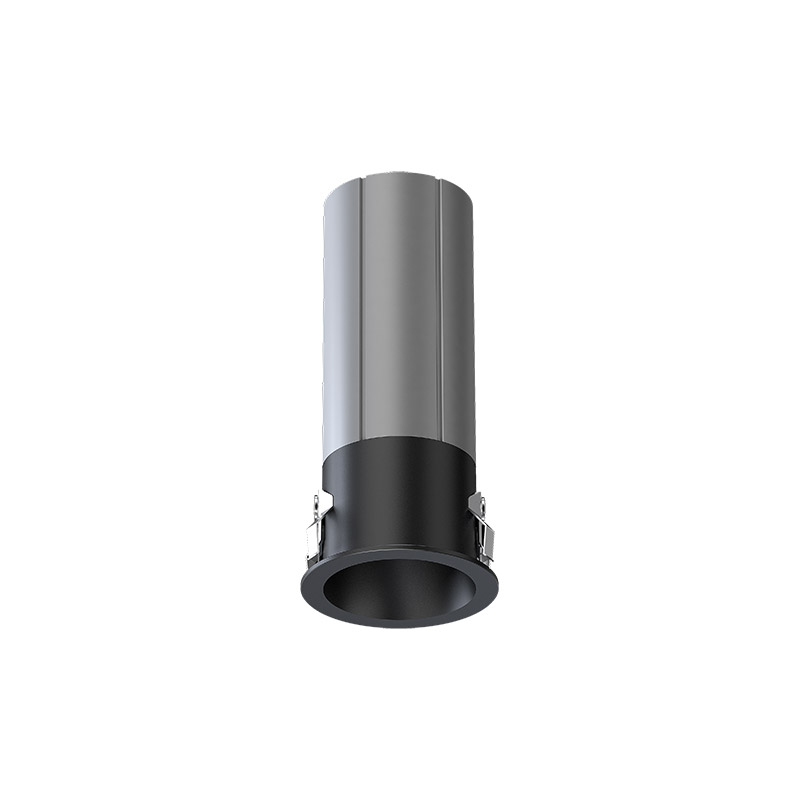

Neodot Trim
Product code:
Features
- Durable die-cast aluminium body for optimal heat dissipation
- High-performance polycarbonate reflector
- Precision PMMA lens for focused, even light distribution
- Anti-glare design for visual comfort in professional and residential spaces
- CRI >90 for true-to-life rendering
- Cree COB
- SDCM (Macadam Step) <3 for excellent colour consistency
- LED lifespan: 50,000 hours (L70 @ 25°C)
- Operating temperature: -20°C to +40°C
- IP Rating: IP20, Class II
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL31-S2568F | 3W | Ø25*68 |
| GL31-S3574F | 5W | Ø35*74.5 |
| GL31-S3593F | 7W | Ø35*93.5 |
| GL31-S4597F | 7W | Ø45*97.5 |
| GL31-5268FT | 3W | Ø52.5*68 |
| GL31-6476FT | 5W | Ø64.5*76.5 |
| GL31-6493FT | 7W | Ø64.5*93.5 |
| GL31-7897FT | 7W | Ø78.5*97.5 |
Optional:
- DIM1: Triac Dimming
- DIM2: 1-10V Dimming Driver
- DA: Dali Dimmable Driver
Ordering Guide:
- GL31-S2568F-24-3-927-DA
Bezel and Reflector Finish Options:
Application:

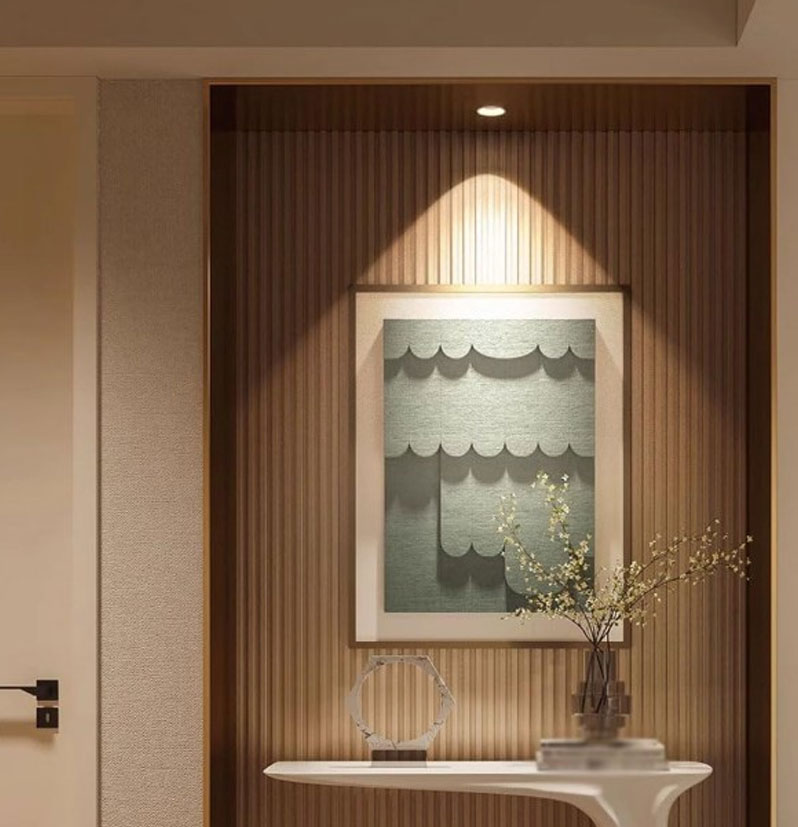

Residential, Hospitality, Office, Corridor, Library etc.
