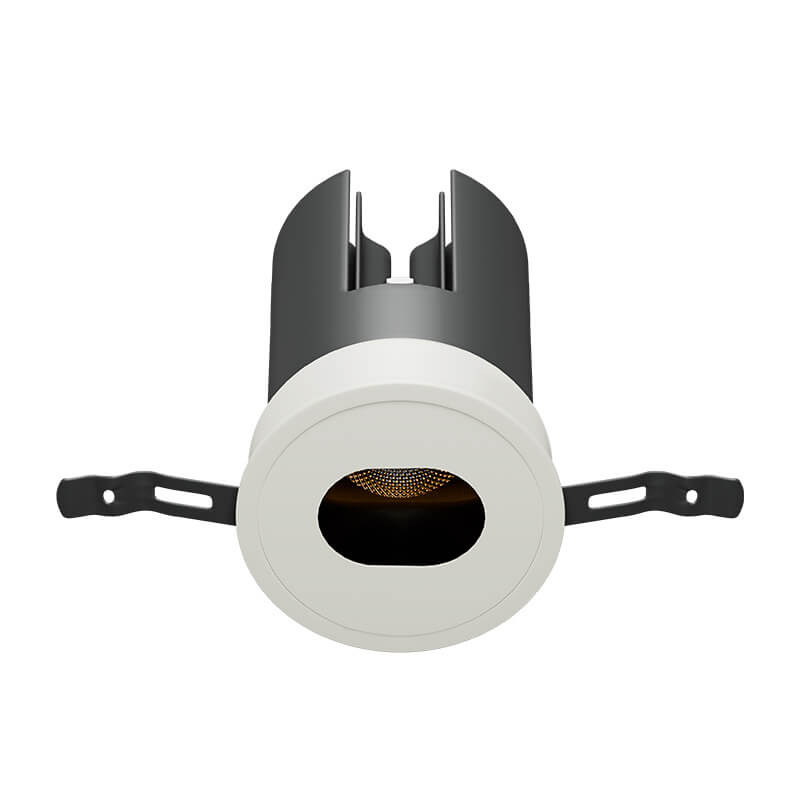

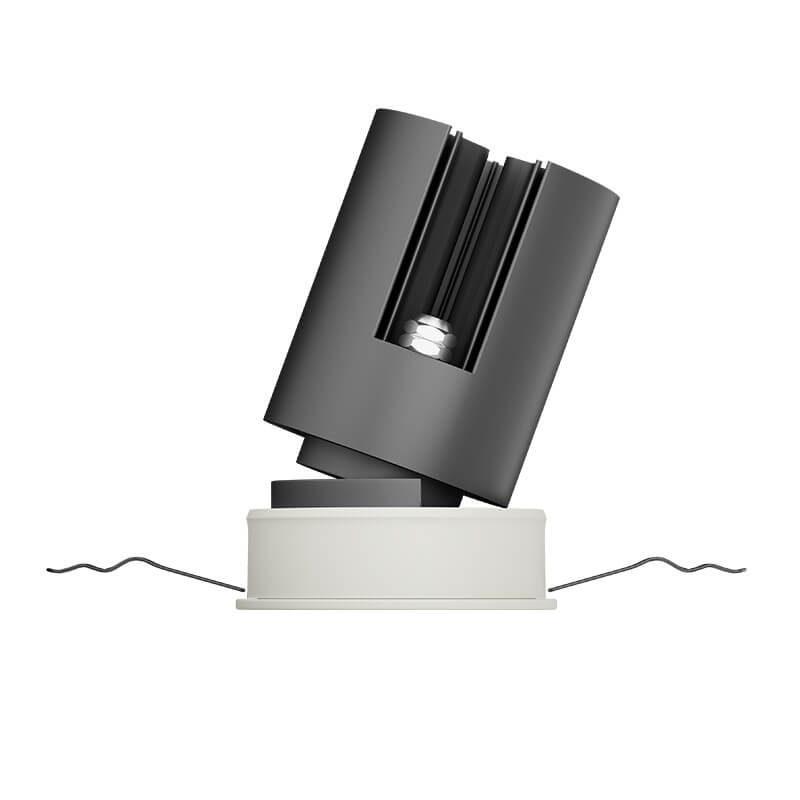

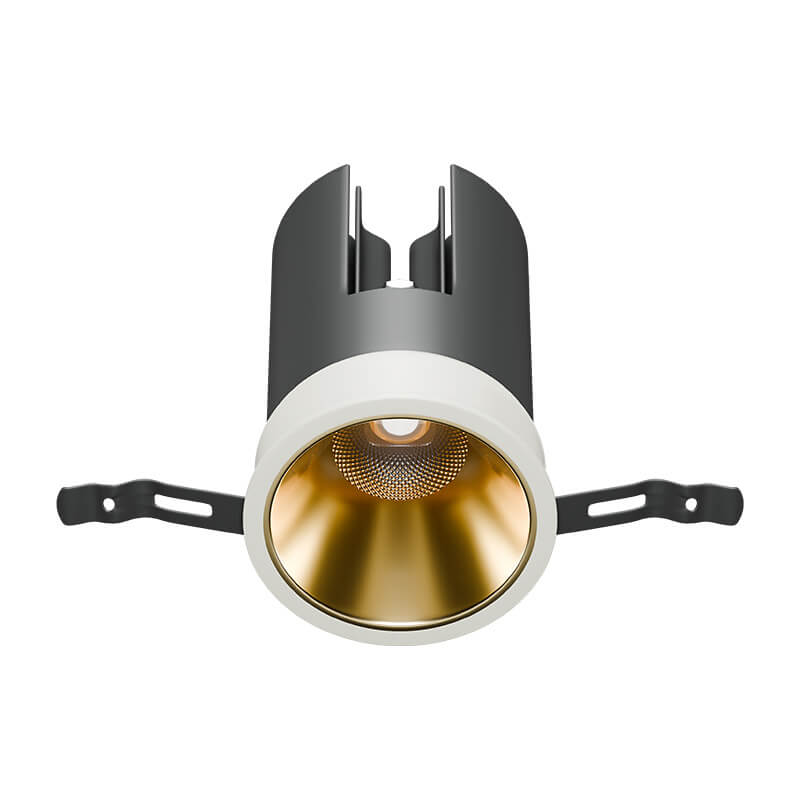

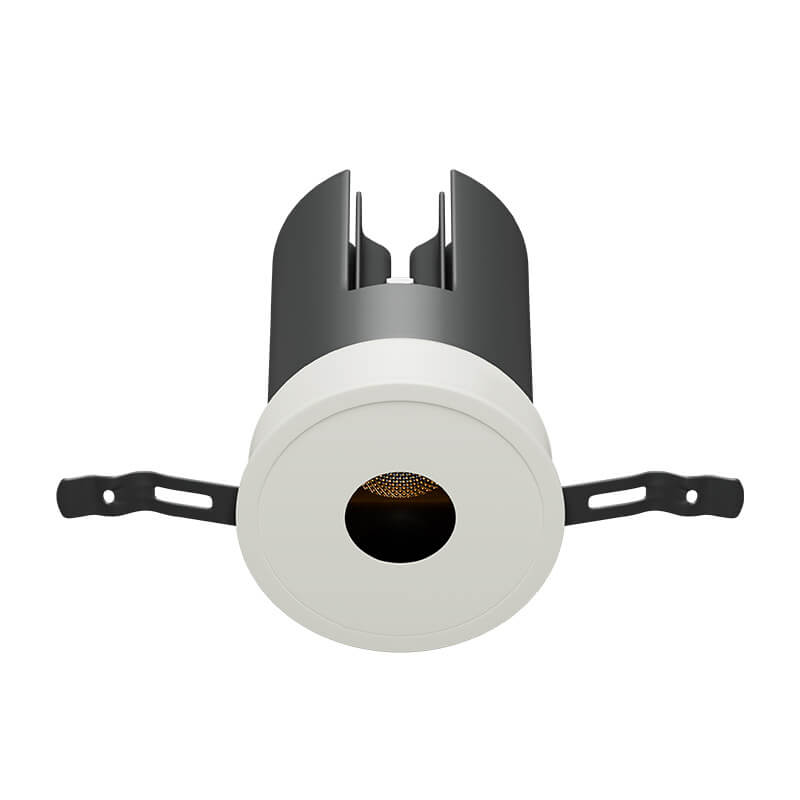

Orion – Trim
Product code:
Features
- Die-cast aluminium body for optimal heat dissipation
- High-performance polycarbonate reflector with different colour options
- Precision PMMA lens for focused, even light distribution
- Anti-glare design for visual comfort in professional and residential spaces
- CRI >90 for true-to-life rendering
- Citizen COB
- SDCM (Macadam Step) <3 for excellent colour consistency
- LED lifespan: 50,000 hours (L70 @ 25°C)
- Operating temperature: -20°C to +40°C
- IP Rating: IP44 (IP54 Optional)
- Class Rating: Class II
| Product Code | Wattage | Size |
|---|---|---|
| GL32A-R1 | 7W / 10W / 12W / 15W / 20W / 30W / 40W / 50W | S1–S9 |
| GL32A-RW1 | 10W / 12W / 15W / 20W | S3–S6 |
| GL32A-RP1 | 7W / 10W / 12W / 15W | S1–S5 |
| GL32A-RO1 | 10W / 12W / 15W | S1–S5 |
Optional:
- L : Honeycomb Louver
- DIM1 : Triac Dimming
- DIM2 : 1-10V Dimming
- DA : Dali Dimmable
Ordering Guide:
- GL32A-S1-18-7-927-S1-DA
Application:
Residential, hospitality, offices, educational, office etc.
