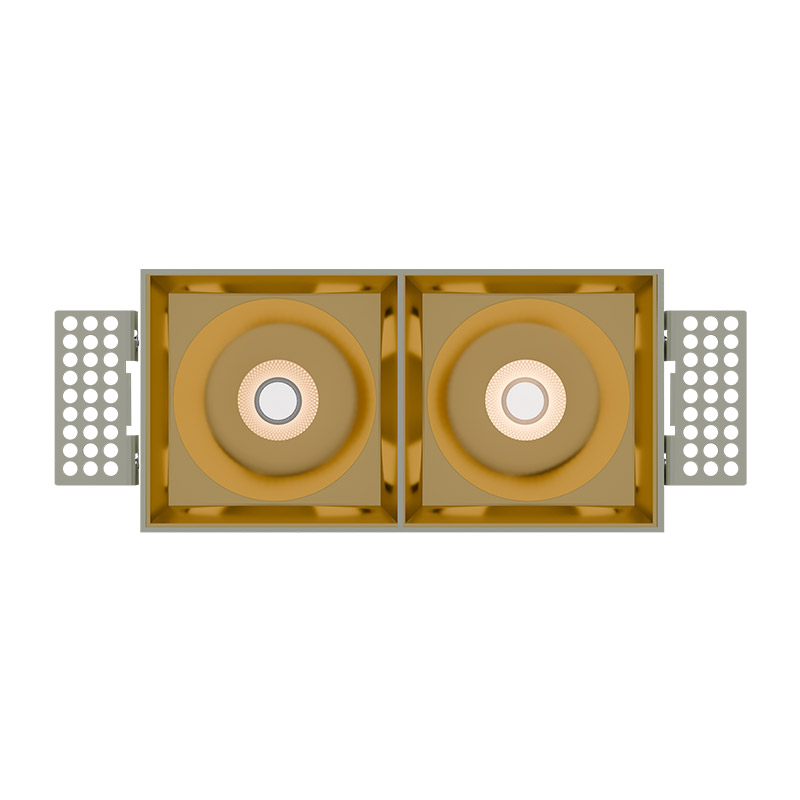

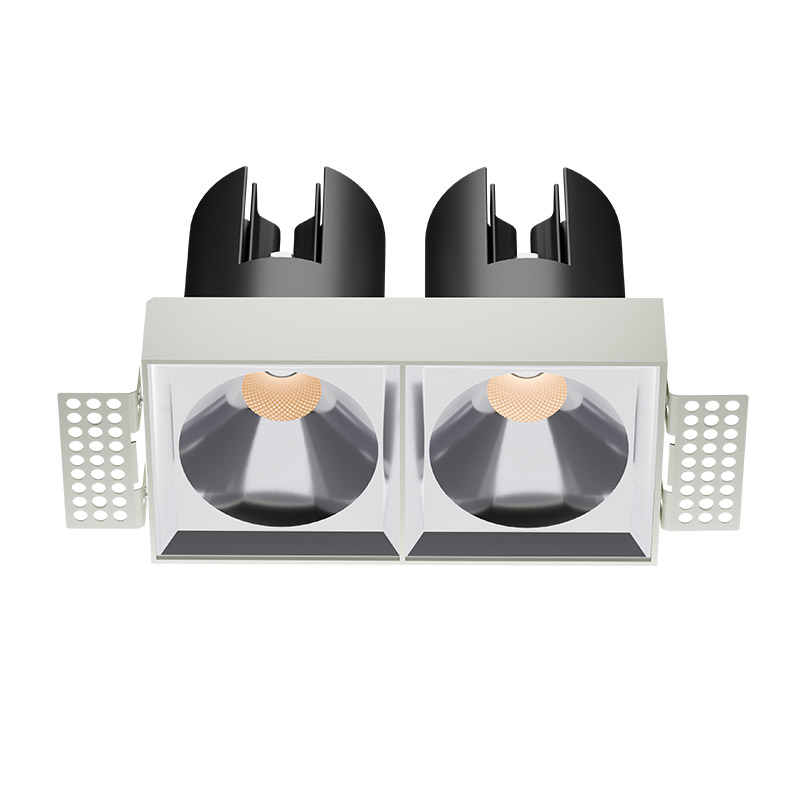

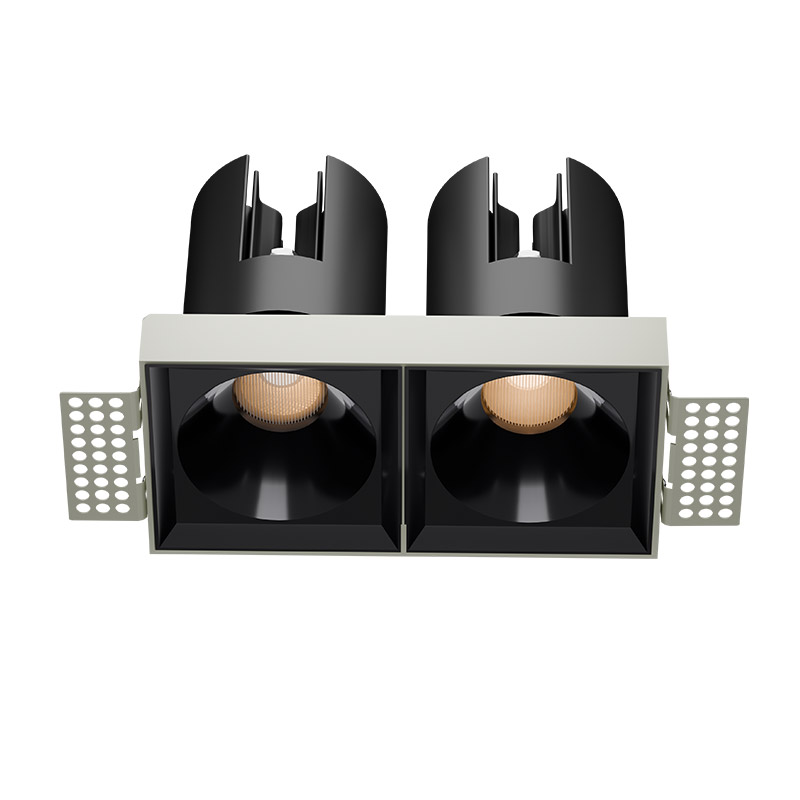

Orion – Double Head – Trimless

Product code: GL32G

Features
  • Die-cast aluminium body for optimal heat dissipation
  • High-performance polycarbonate reflector with different colour options
  • Precision PMMA lens for focused, even light distribution
  • Anti-glare design for visual comfort in professional and residential spaces
  • CRI >90 for true-to-life rendering
  • Citizen COB
  • SDCM (Macadam Step) <3 for excellent colour consistency
  • LED lifespan: 50,000 hours (L70 @ 25°C)
  • Operating temperature: -20°C to +40°C
  • IP Rating: IP44 (IP54 Optional)
  • Class Rating: Class II

Product Code Wattage Size
GL32G-TS2 2*7W / 2*10W / 2*12W / 2*15W / 2*20W / 2*30W S10-S18
GL32G-TSW2 2*10W / 2*12W / 2*15W S14 S15 S16
Optional:
  • L : Honeycomb Louver
  • DIM1 : Triac Dimming
  • DIM2 : 1-10V Dimming
  • DA : Dali Dimmable



Ordering Guide:
  • GL32A-S1-18-7-927-S1-DA
Application:

Residential, hospitality, offices, educational, office etc.
