Toledo – Surface
Product code:
Features

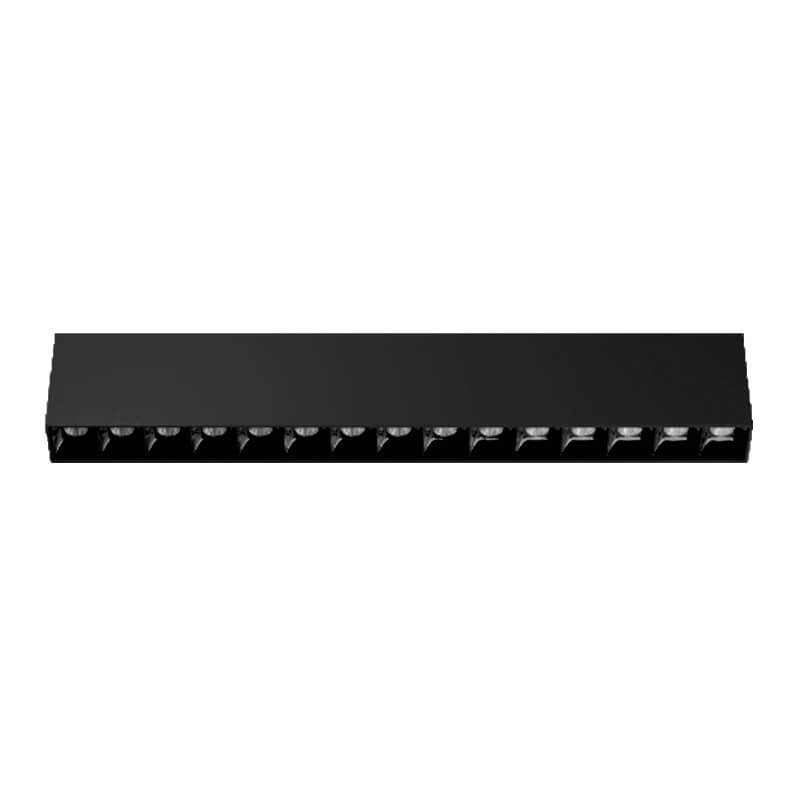

- Surface Mounted Mini Linear Light
- Die-cast aluminium body with powder-coated black finish (white finish available)
- High-performance polycarbonate reflector (available in black & white finish)
- Precision PMMA lens for focused and uniform light distribution
- Anti-glare design for enhanced visual comfort
- CRI >90 for true-to-life colour rendering
- Osram SMD LED Chip for reliability and efficiency
- SDCM (MacAdam Step) <3 ensuring colour consistency
- LED lifespan: 50,000 hours (L70 @ 25°C)
- Operating temperature: -20°C to +40°C
- IP Rating: IP20
- Class Rating: Class II
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL34D-SM136 | 10W | 136.6*34*70 |
| GL34D-SM270 | 20W | 269.2*34*70 |
| GL34D-SM401 | 30W | 401.7*34*70 |
Optional:
- DIM1: Triac Dimming
- DIM2: 1-10V Dimming
- DA: Dali Dimmable
Ordering Guide:
- GL34D-SM136-18-10-927-DA
Dimension:
Application:
Offices, hospitality, showroom, educational facilities, residential villas etc.
