Moduline
Product code:
Features
- Extruded aluminium luminaire body
- Diffuser options available: PC Opal & Prismatic

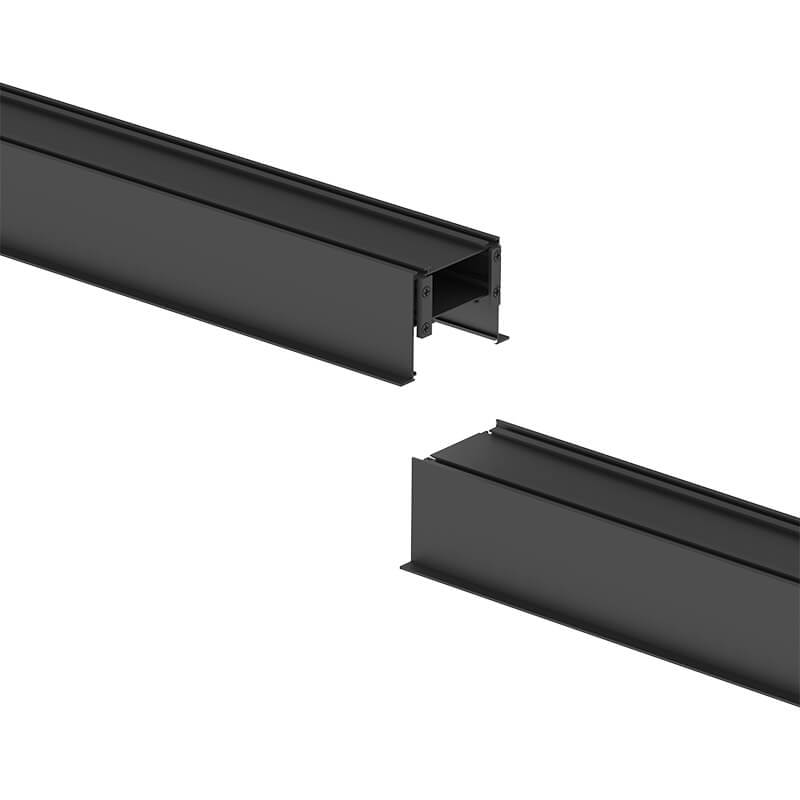

- Fast-connect system enables linking of two luminaires within 5 seconds

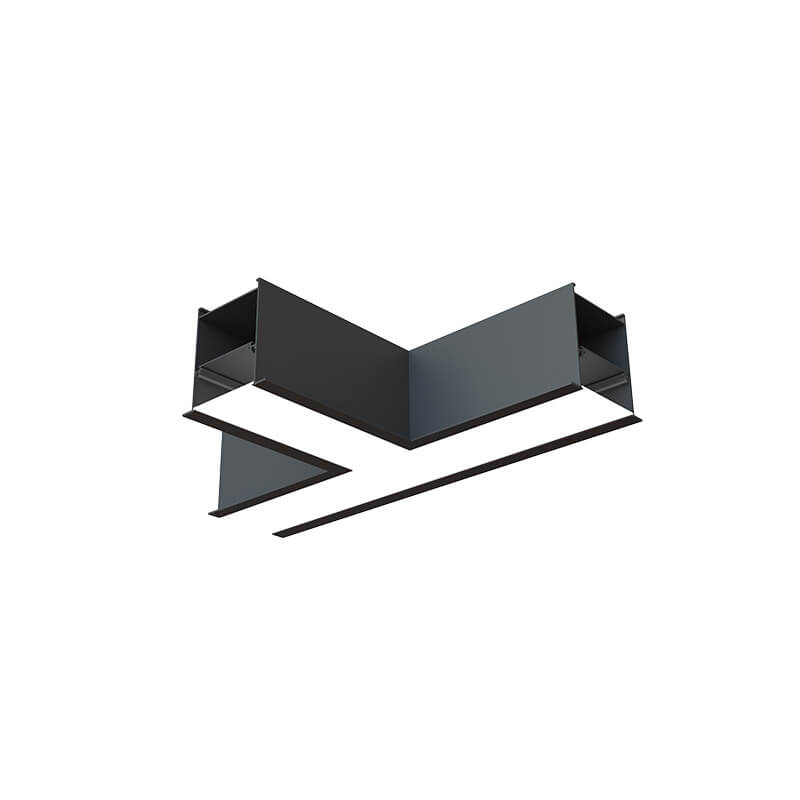

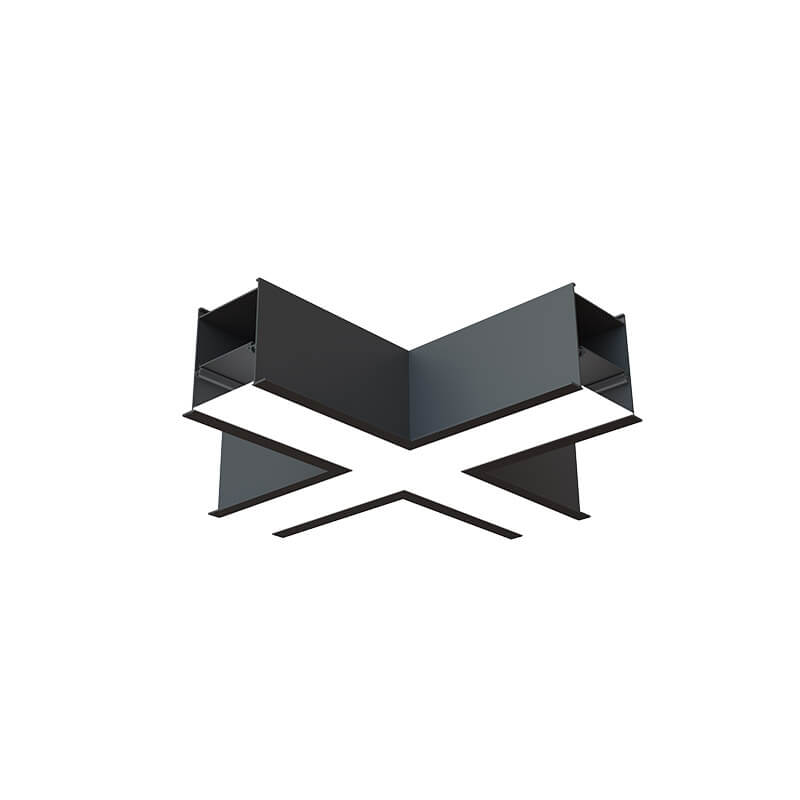

- Suitable for individual installation, continuous runs, and customised pattern configurations
- Adjustable correlated colour temperature (CCT) via DIP switch (optional)
- Available finishes: White, Black, and other RAL colour shades
- Luminous efficacy up to 100-150lm/W
- Equipped with high-efficiency Osram & San’an LED chips
- Colour consistency: SDCM (MacAdam) <3
- Colour rendering index (CRI): >80 / >90
- LED lifetime: 50,000 hours (L70 @ 25°C)
- Operating ambient temperature: -20°C to +45°C
- IP rating: IP40
- Electrical class: Class I
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL42-R98 | 22W | 560*98*70 |
| GL42-R98 | 44W | 1120*98*70 |
| GL42-R98 | 45W | 1400*98*70 |
| GL42-R98 | 72W | 1820*98*70 |
Optional:
- DIM : 1-10V Dimming
- DA : Dali Dimmable
- CA : Casambi
- EL3 : 3 Hours Emergency Kit
- M : Motion Sensor
Ordering Guide:
- GL42-R98-OP-22-840-DA
*Optics:
- OP – Opal
- PR – Prismatic
- L – Lens

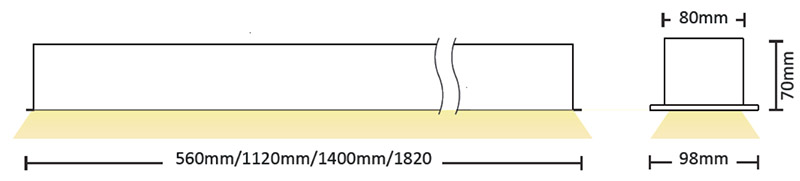

Dimension:
Application:

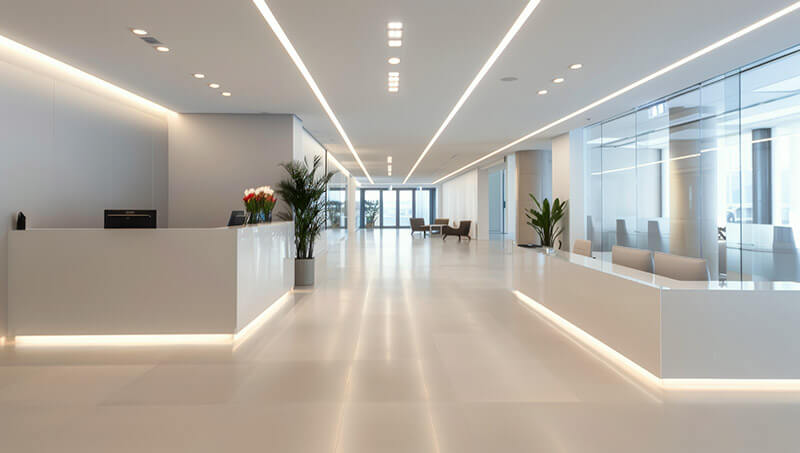

Offices, education, retail, shopping centers, residences, common indoor areas, reception, waiting areas, lift lobby, corridors, etc.
