COB PRO Series
Product code:
Features

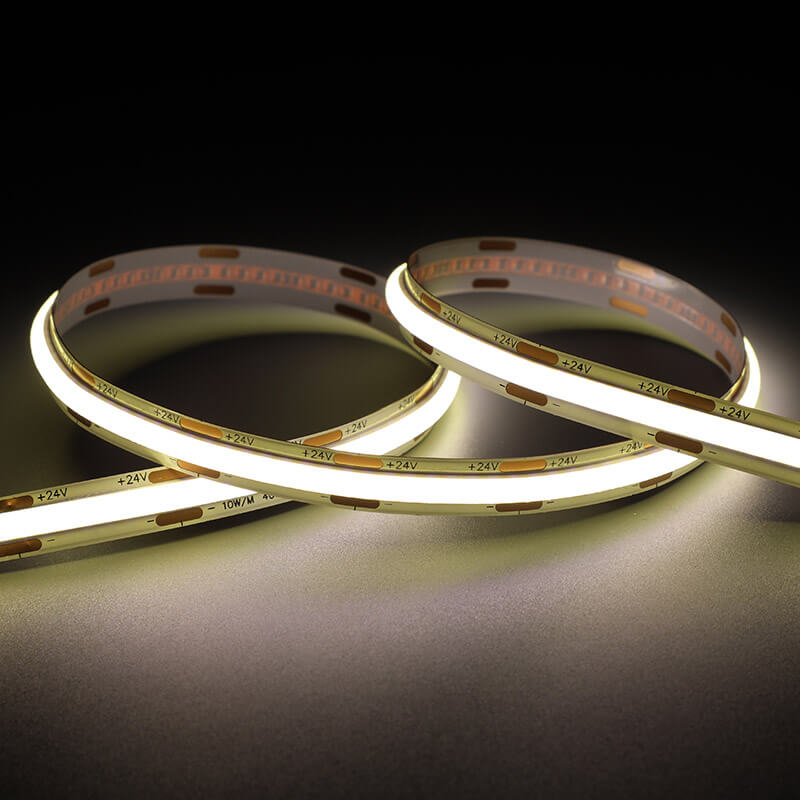

- COB based LED Strips having power rating of 8, 10 & 12Watts/meter and luminous efficacy of up to 120 lumens/Watt
- This family of COB Strip having FPC (flexible printed circuit) with 3oz layered copper foil for enhanced durability and efficient heat dissipation
- High positioning, high reliability, ultra-thin appearance, and super flexible bending
- Adopting an exclusively designed protective structure, with excellent bending resistance, strong reliability, and stable quality
- 150° beam angle ensures uniform and optimal light distribution
Colour consistency: SDCM (MacAdam) <3 - 24V DC system designed for stable, flicker-free operation and improved performance
- Colour rendering index (CRI): >90
- LED lifetime: 50,000 hours (L70 @ 25°C)
- Operating ambient temperature: -20°C to +45°C
- IP rating: IP20, IP65 & IP67
- Supplied in a standard 5-meter reel packaging
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL62A-COB | 8W/M | L5000*W8*H2.3mm |
| GL62A-COB | 10W/M | L5000*W8*H2.3mm |
| GL62A-COB | 12W/M | L5000*W8*H2.3mm |
Optional:
- DIM : 1-10V Dimming
- DA : Dali Dimmable
- CA : Casambi
Ordering Guide:
- GL62A-COB-8-940-IP20-DA
Application:
Indoor coves, architectural features, cabinets, lobbies, reception, lift area, restaurants, bars, guest rooms, corridors, ball rooms, conference areas etc.
