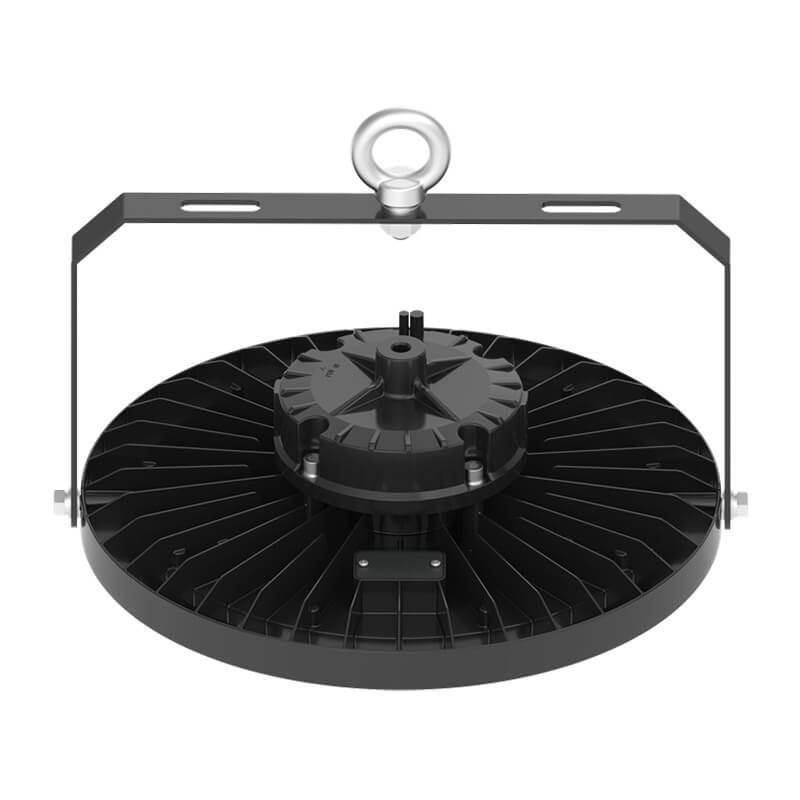

Flexibay
Product code:
Features
- Die-cast aluminium housing with durable outdoor electrophoretic paint finish
- Polycarbonate 3-in-1 optical lens with adjustable beam angles: 60° / 90° / 120° (standard)
- Adjustable power via DIP switch: 55% / 80% / 100% output (standard)
- Optional 3-CCT selectable colour temperature via DIP switch: 3000K / 4000K / 5000K
- High-performance Lumileds SMD LED chips, up to 140 lm/W efficacy
- Colour rendering index (CRI): >80
- LED lifetime: 50,000 hours (L70 @ 25°C)
- Operating ambient temperature: -40°C to +50°C
- IP rating: IP65
- Installation: Surface or suspended
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL72-HB100 | 100W | Ø 255*151 |
| GL72-HB150 | 150W | Ø 255*151 |
| GL72-HB200 | 20W | Ø 320*151 |
Optional:
- DA: Dali Dimmable
- MS: Microwave Sensor
- PIR: PIR Sensor
- AB: Adjustable Bracket
- CH: Safety Chain
- ALR: Aluminium Reflector
- PCR: Polycarbonate Reflector
Ordering Guide:
- GL72-HB100-100-840-DA
Dimension:
Application:
Warehouses, Factories & Workshops, Logistics centers, Gymnasiums, Exhibition halls, Supermarkets.
