Linearbay
Linearbay - Image 2
Linearbay - Image 3

Linearbay

Product code: GL73

Features
  • Bright, robust and durable SMD LED linear highbay light
  • Die-cast aluminium housing with black powder coating and red end caps colour
  • Polycarbonate optical lens
  • Multiple beam angles: 30°×70°, 60°×100°, 120°
  • High-performance Lumileds SMD LED chips
  • Up to 130 lm/W luminous efficacy
  • Colour rendering index (CRI): >80
  • LED lifetime: 50,000 hours (L70 @ 25°C)
  • Operating ambient temperature: -40°C to +50°C
  • Input Voltage: 100~277VAC 50/60Hz
  • Class: I
  • IP rating: IP65
  • Suitable for suspended or wall-mount installation



Product Code Wattage Dimension (mm)
GL73-LB50 50W 342*135.4*84.4
GL73-LB100 100W 633*135.4*84.4
GL73-LB150 150W 925*135.4*84.4
GL73-LB200 200W 1215*135.4*84.4
Optional:
  • DA: Dali Dimmable
  • MS: Microwave Sensor
  • AB: Adjustable Bracket
Ordering Guide:
  • GL73-LB50-50-840-DA

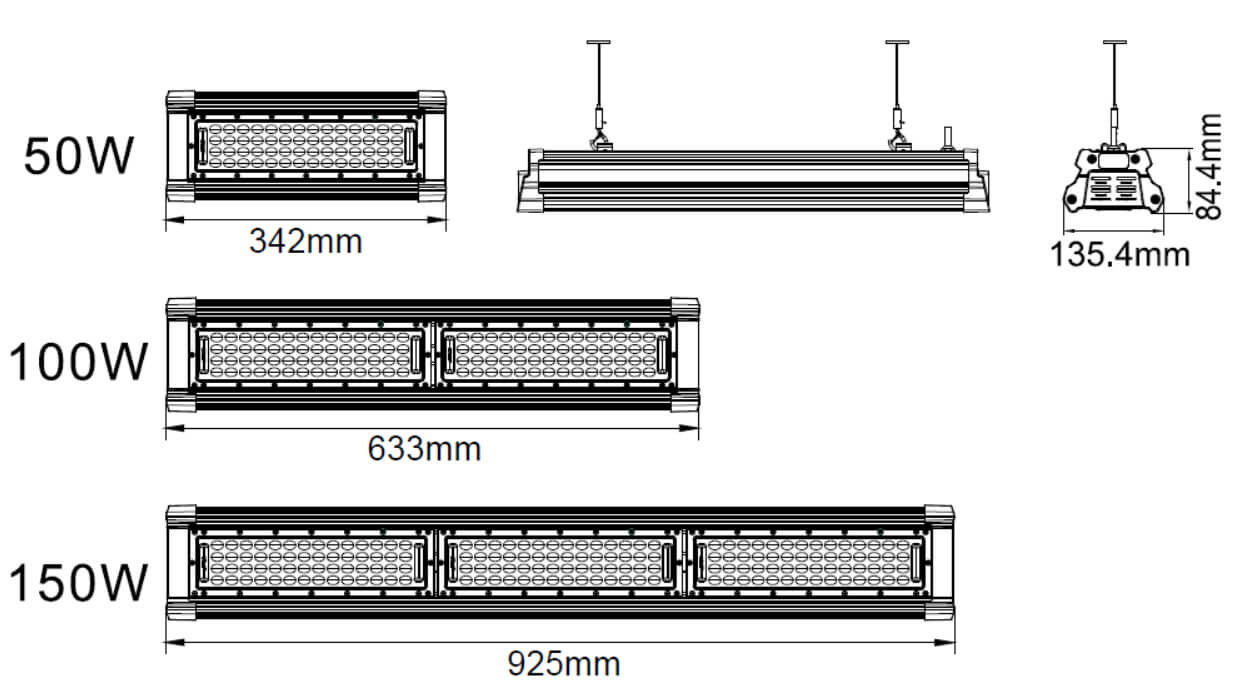

Dimension:





Application:

Warehouses, Factories & Workshops, Logistics centers, Gymnasiums, Exhibition halls, Supermarkets.
