Canopy S
Product code:
Features
- Die-cast aluminium housing
- Diffuser is a clear/opal anti-UV prismatic glass for high efficiency and vandal resistance
- Tamper proof fixings for increased vandal resistance
- Anti-UV electrostatic powder spraying, standard colour: Black, Silver, RAL7043, RAL7016
- Beam Angles: 135°
- High-performance Lumileds 3030 LED chip
- Up to 135 lm/W luminous efficacy
- Optional 3-CCT selectable colour temperature via DIP switch: 3000K / 4000K / 5000K
- Colour rendering index (CRI): >80
- LED lifetime: 50,000 hours (L70 @ 25°C)
- Operating ambient temperature: -40°C to +50°C
- IP rating: IP65
- Suitable for surface and suspended installation
| Product Code | Wattage | Dimension (mm) |
|---|---|---|
| GL74-SC40 | 40W | 265*269*92 |
| GL73-SC50 | 50W | 265*269*92 |
| GL73-SC60 | 60W | 265*269*92 |
| GL73-SC75 | 75W | 265*269*92 |
Optional:
- DA: Dali Dimmable
- MS: Microwave Sensor
- AB: Adjustable Bracket
Ordering Guide:
- GL74-SC40-40-840

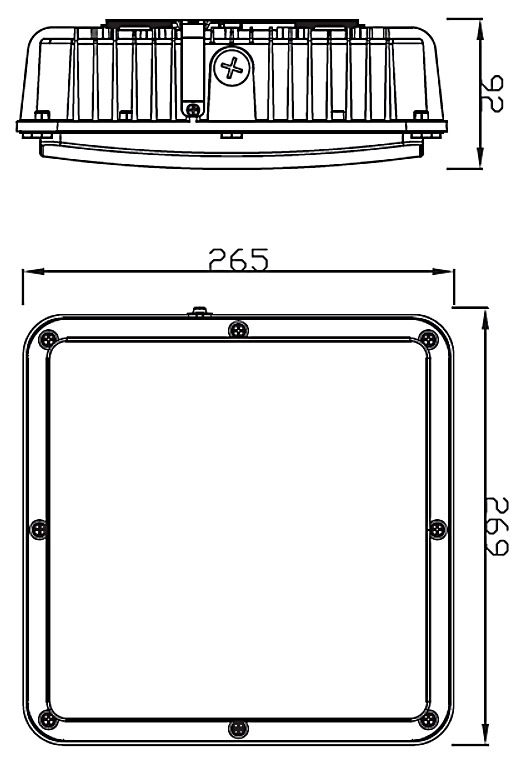

Dimension:
Application:
Low-medium bay general lighting, underpasses, petroleum canopies, fueling stations, industrial plants and logistics centers.
